Technical Specifications

DC characteristics
Counter electrode:

  • compliance voltage: ±20 V
  • output current: ±2 A

Continuous power:

  • 20 W

Input specifications (reference electrode):

  • impedance: 100 GOhm // 1.5 pF

Potentiostatic Mode
Counter electrode:

  • Potential range: ±20 V

Resolution:

  • 1 mV

Working electrode:

  • input current ranges: ±1 µA to ±1 A in 7 steps

Reference electrode:

  • potential range: ±10 V

Filters
The PG 410 contains two built-in filters.

Current filter:

  • Filter setting in 6 steps
    10 Hz - 100 kH

Bandwidth control:

  • in 8 steps 30 Hz - 100 kHz

Initial Potential
Two ten turn potentiometer for
±1 V and ±10 V

Galvanostatic Mode
Current Range:

  • ±1 µA to ±2 A in 7 steps

Minimum resolution:

  • 0.1%

Dynamic Data
 Slew rate:

  • 10 V/µs

Bandwidth:

  • > 1 MHz in 1 mA-range at -3 dB

Phase shift:

  • < 10° at 200 kHz

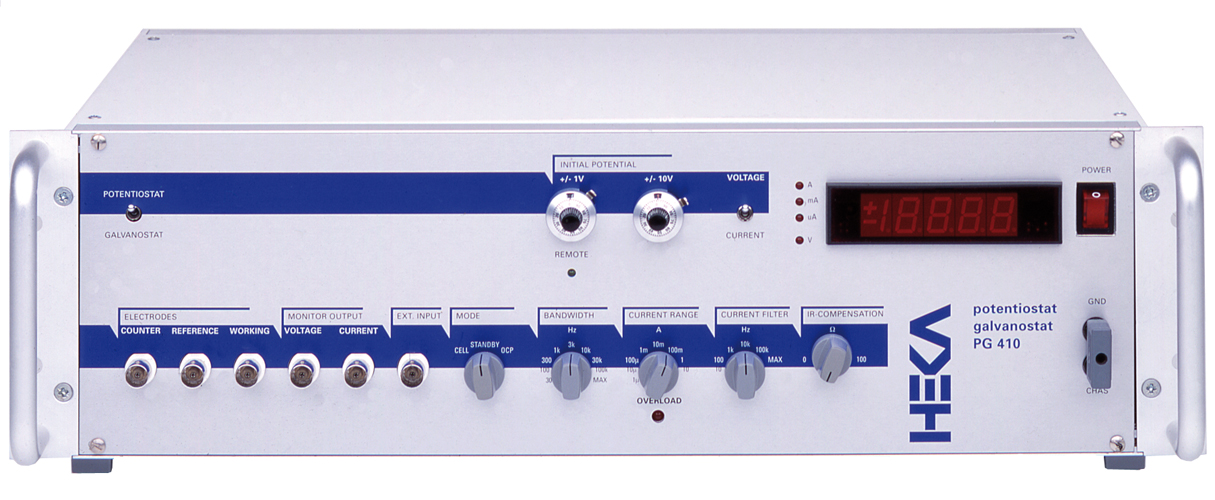

The PG 410 features state-of-the-art amplifier technology. It includes amplification ranges
for large currents, new hardware filters. The most significant advance is the adjustment and
control of the amplifier at the software level via a digital interface.
The versatility of the amplifier and its superb technical specifications make the PG 410 the
instrument of choice for all electrochemical experiments. The highly advanced integration
of hardware and software of the PG 400 system eliminates compatibility problems, time consuming set-up operations, and training time.

Short description of the PG 400 series:
  • Potentiostatic or galvanostatic can be selected as required

  • The desired bandwidth can be set in 9 steps

  • A filter adjustment on the current amplifier allows filtering of the output voltage, which is proportional to the current, for attenuation of the recorder signal.

  • The resistance between the reference and working electrode can be compensated with the IR adjustment

  • The initial potential can be set in two potential ranges

  • The output signals for voltage and current can be monitored with the use of the 4 1/2 digital voltmeter

  • The power outputs are protected against short-circuiting

  • The potentiostat can also be operated in the ”floating” mode; that is, the chassis ground is isolated from that of the electric power

  • A digital interface allows to set and to read the potentiostat settings.

  • The digital interface is opto-coupled, to provide electrical spikes and to decrease the noise level.

  • A LED indicates the mode of the REMOTE or LOCAL mode.
